2022 Audi A3 Electrical System Warning Software Update
Audi has issued Technical Service Bulletin 9309 for the 2022 A3 to proactively prevent various electrical system warnings from appearing in the instrument cluster. The fix involves a software update for the gateway control module, performed by authorized Audi dealers.
Sarah Mitchell2022 Audi A3
Symptoms
This Technical Service Bulletin (TSB) 9309 addresses a condition where "Various electrical system warnings may appear in the instrument cluster" in affected 2022 Audi A3 vehicles. This issue is attributed to a software problem within the vehicle's gateway control module.
Diagnosis and Trigger Conditions

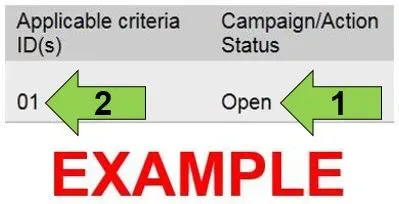

This software update is a proactive measure designed to prevent the occurrence of these electrical system warnings. For a vehicle to be eligible for this update, it must display the code 9309 in the Elsa Campaign/Action Information screen at an authorized Audi dealership on the day of repair.
Repair Procedure Summary
The repair for the 2022 Audi A3 electrical system warning involves updating the gateway control module software using the Audi diagnostic system. The process requires specific conditions to be met to ensure a successful and safe update:
- Preparation: Ensure the ODIS diagnostic software is fully updated. Connect a battery charger capable of providing a minimum of 90 Amps continuously to the vehicle's battery, maintaining voltage above 12.5 volts throughout the update. Turn off screen saver and power-saving settings on the diagnostic tester.

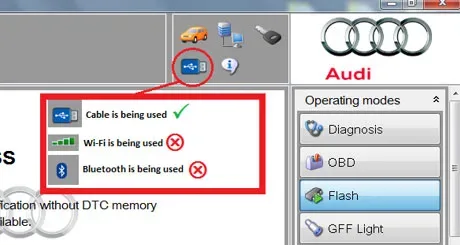

- Connection: The VAS Diagnostic Tester must be plugged in using its power adapters and connected to the vehicle via a USB cable. Using Bluetooth or Wi-Fi for this connection is strictly prohibited, as it increases the risk of connection loss and potential damage to control modules.

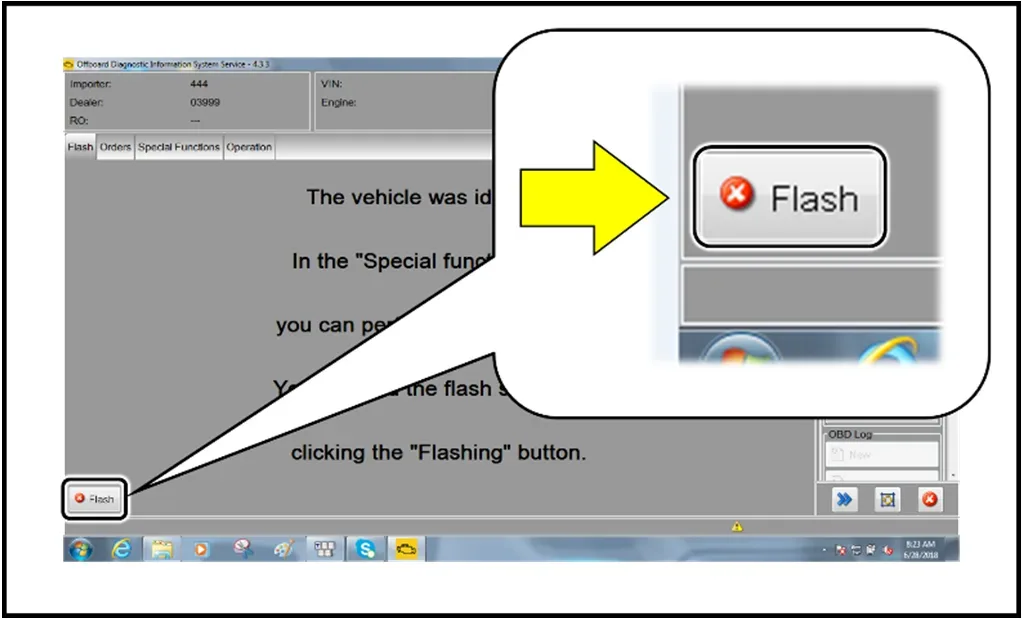

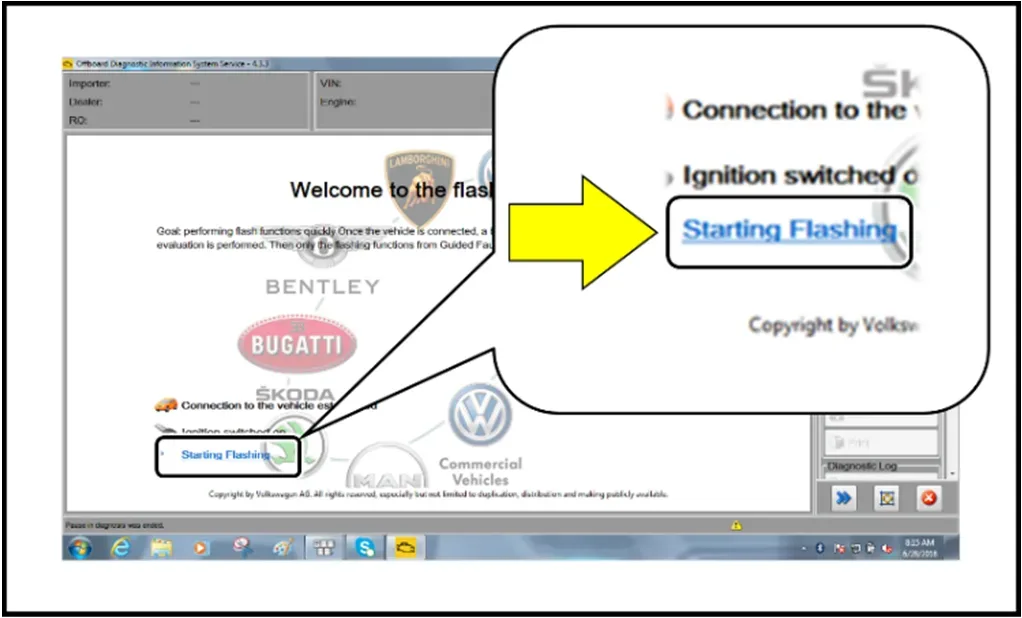

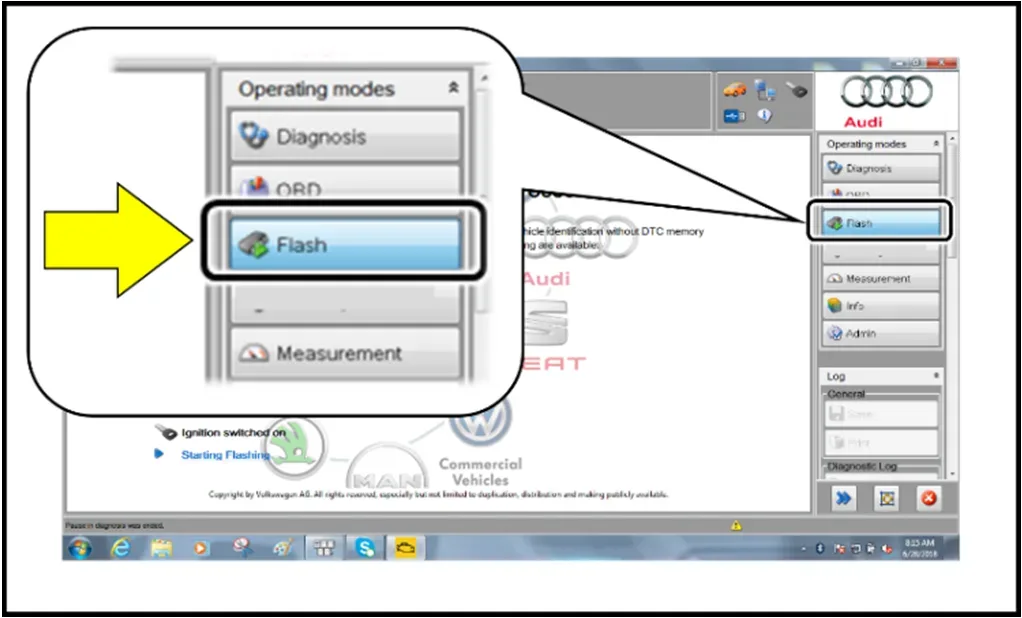

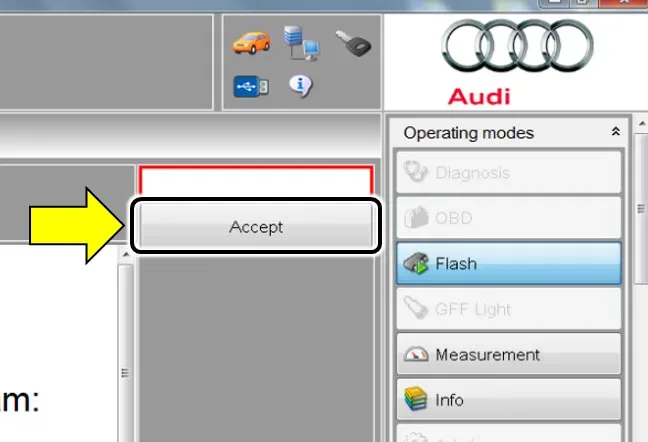

- Initiating the Update: The technician will open the vehicle's hood and battery cover, then connect the battery charger. Hazard warning lights must be switched on to prevent the system from entering bus sleep mode during the update. The diagnostic tester is then connected, and the ODIS program is started.

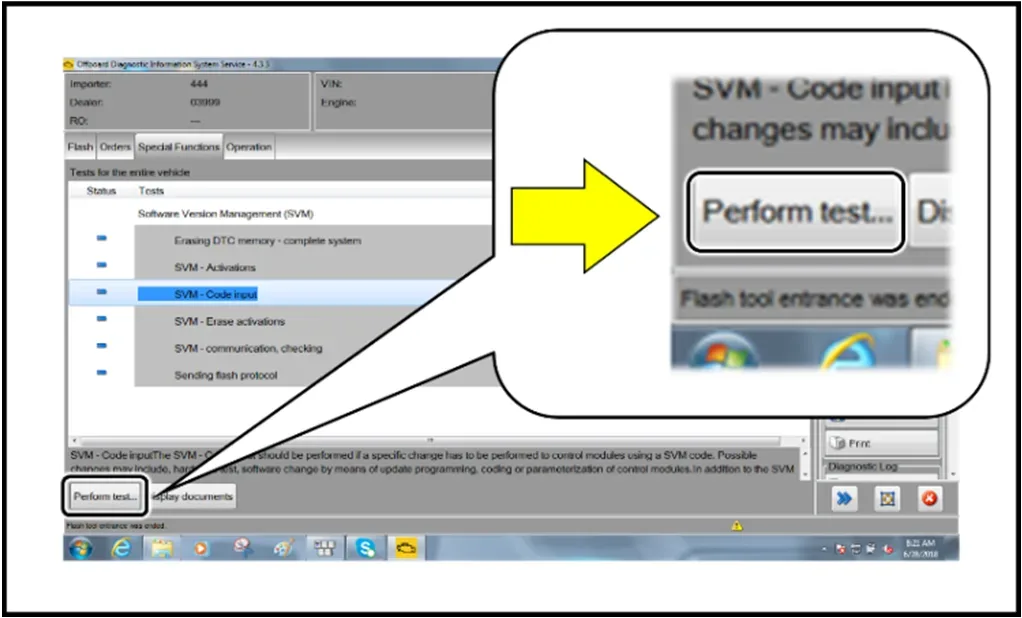

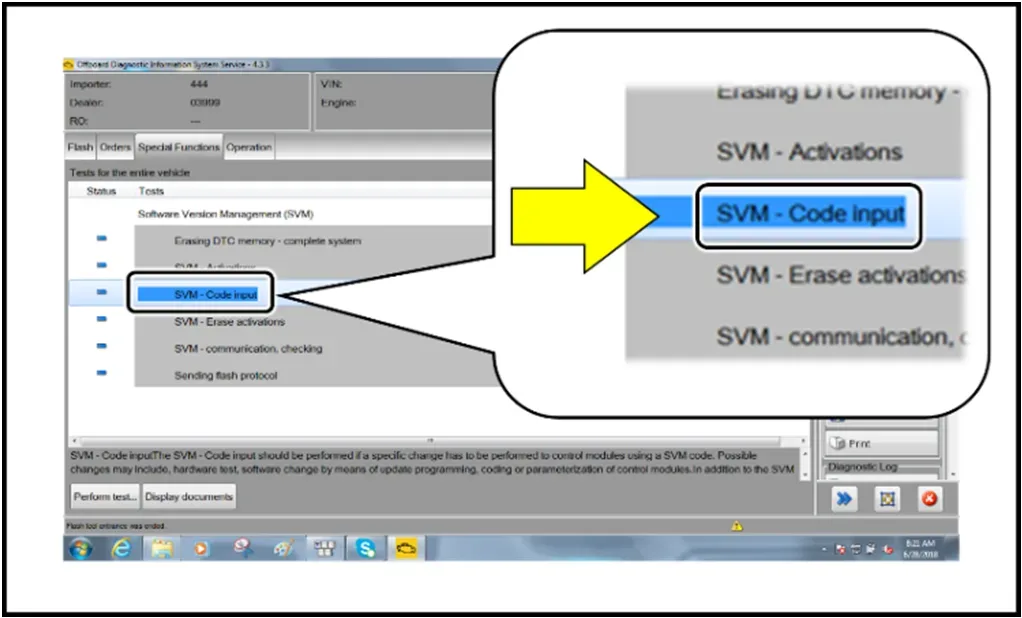

- Software Version Management (SVM): The update procedure is performed using the
Gallery
11 images
Frequently Asked Questions
- What is Audi TSB 9309 for the 2022 A3?
- Audi Technical Service Bulletin (TSB) 9309 is a proactive software update for the 2022 Audi A3's gateway control module. It aims to prevent various electrical system warnings from appearing in the instrument cluster due to a known software issue.
- What symptoms does TSB 9309 address in the 2022 Audi A3?
- TSB 9309 addresses the potential for "Various electrical system warnings may appear in the instrument cluster" in the 2022 Audi A3. This 2022 Audi A3 electrical system warning is caused by a software issue.
- How is the 2022 Audi A3 electrical system warning issue resolved?
- The issue is resolved by updating the software of the gateway control module. This procedure must be performed by an authorized Audi dealer using specific diagnostic tools and following strict guidelines, including maintaining proper battery voltage and using a wired USB connection for the diagnostic tester.
- Is this software update covered under warranty?
- Yes, this update is generally covered under the New Vehicle Limited Warranty. Vehicles must meet specific criteria, including showing the 9309 code in the Elsa system and being within the warranty period. Dealers will process the claim using service number 9309.
- What special tools are required for this software update?
- Authorized Audi technicians will use a Battery Tester/Charger capable of a minimum 90 Amp continuous supply (such as VAS 5908) and a Diagnostic Tester (like VAS6150X/VAS6160X or equivalent) to perform the software update.
